MULTiLED-SL

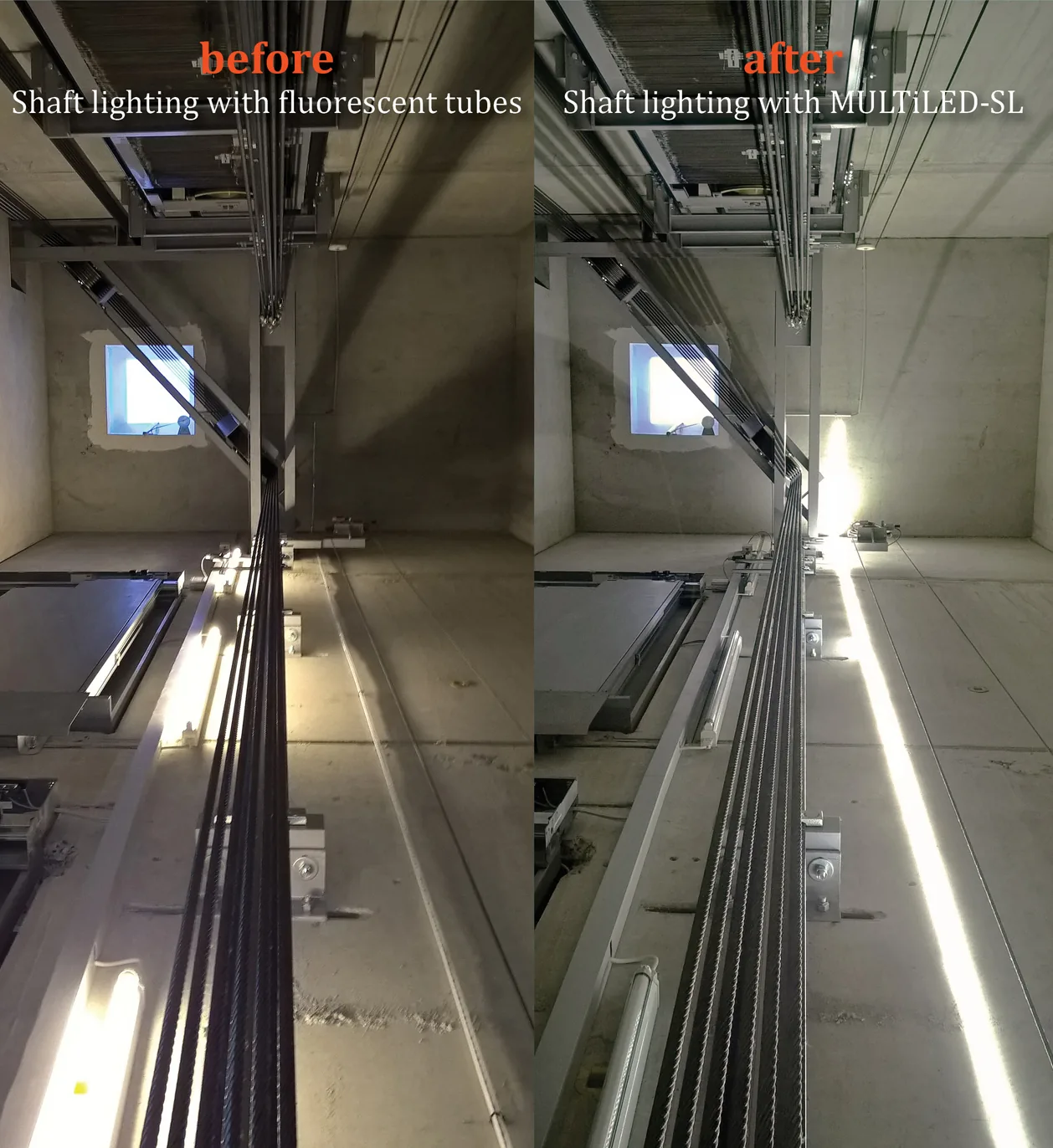

MULTiLED-SL provides an EN 81-20 compliant, equally bright and almost shadow-free illumination of the shaft up to 10 m² floor space in concrete walls. At very large shafts a second lighting can be installed e.g. at the opposite shaft wall, and at very high lifts more lightings can be installed one above the other.

The default colour is daylight white, giving a real colour reproduction and a high contrast of all illuminated items in the shaft.

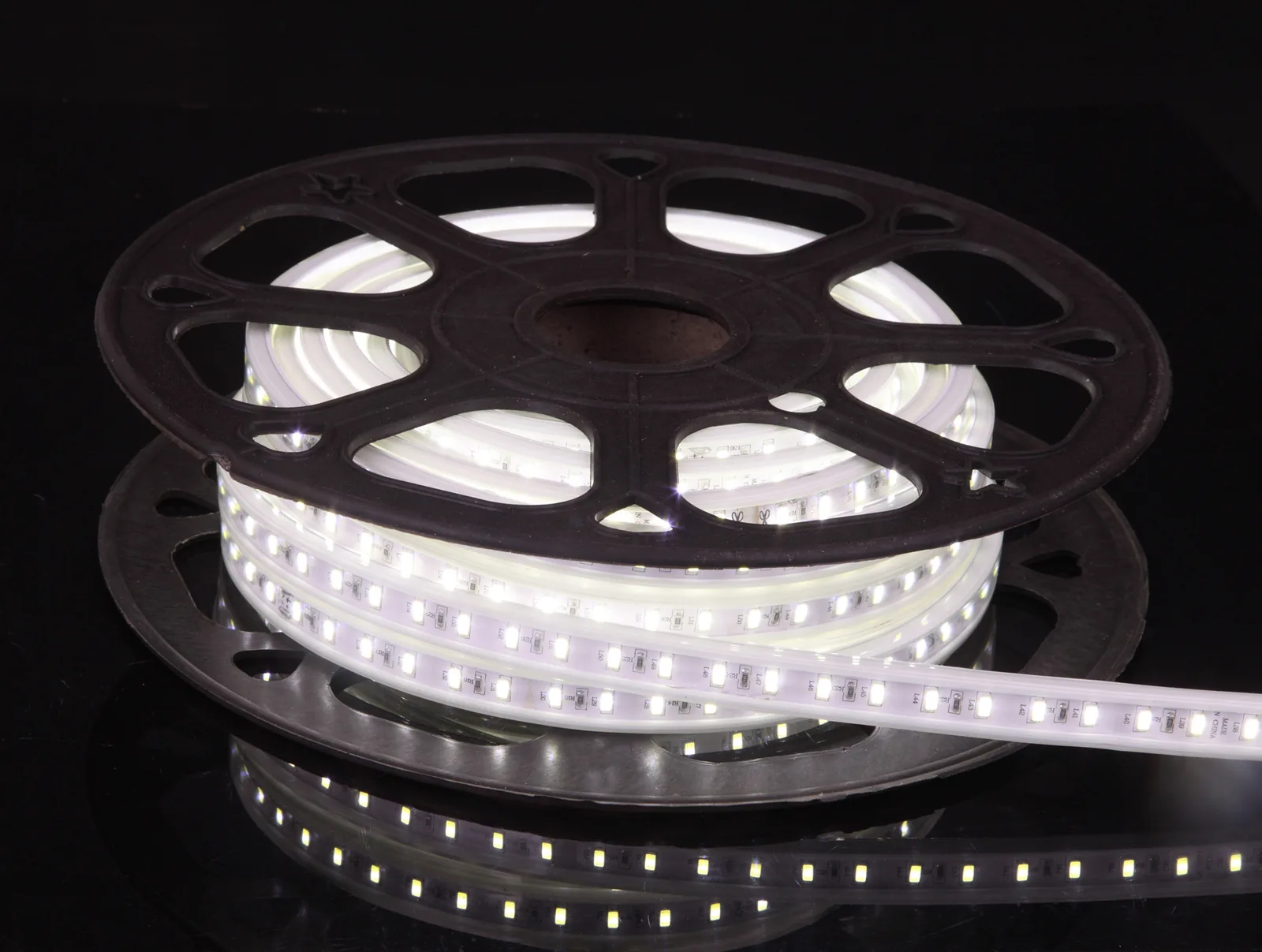

MULTiLED-SL consists of flexible circuit boards, embedded in a transparent PVC sheath. The inner white moulding of printed circuit boards with side reflectors provides more light output than competitive products. The special seals of all interchanges and the fully encapsulated control electronics integrated in the cable secure IP68. The MULTiLED LED are connected 3 times parallel, thus not only very bright, but also durable. Would it nevertheless come to a PCB track or component failure, only one LED or maximum one meter of the lighting would be affected.

Assembly

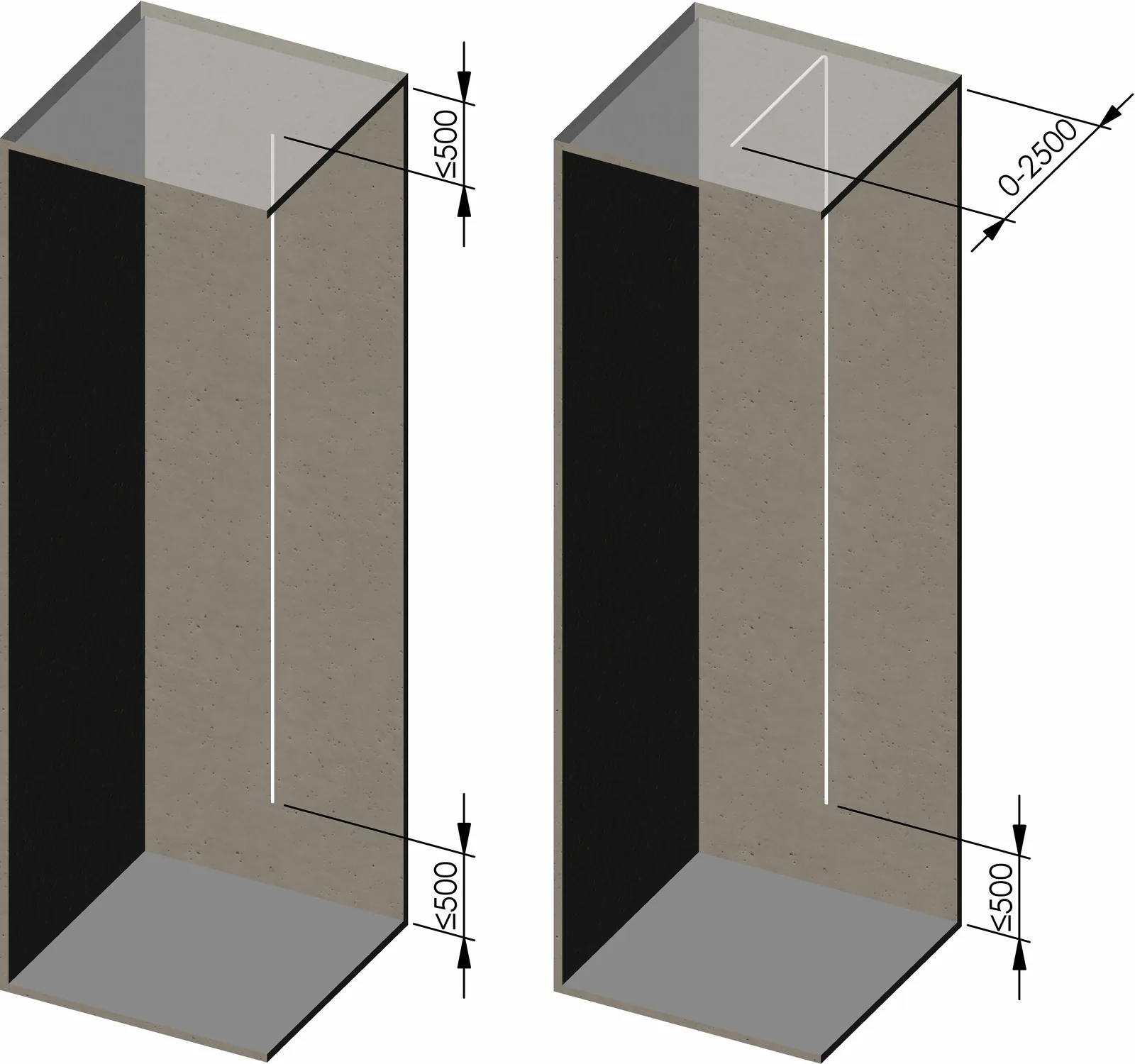

Fig. L: minimal length
Fig. R: optimal length

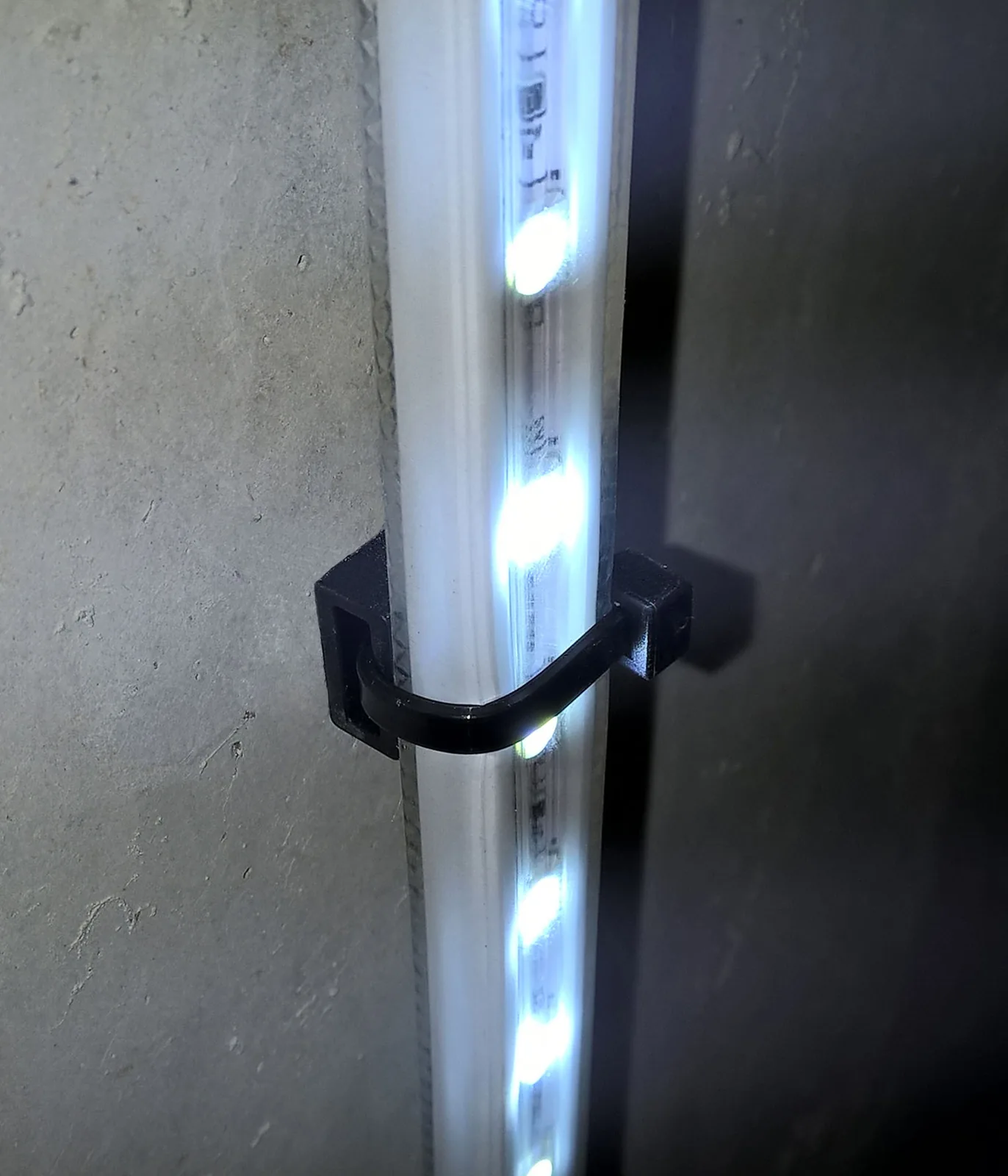

Procedure: drill a 6mm hole every 2m, knock-in the dowels, fasten the LED strip with the cable ties

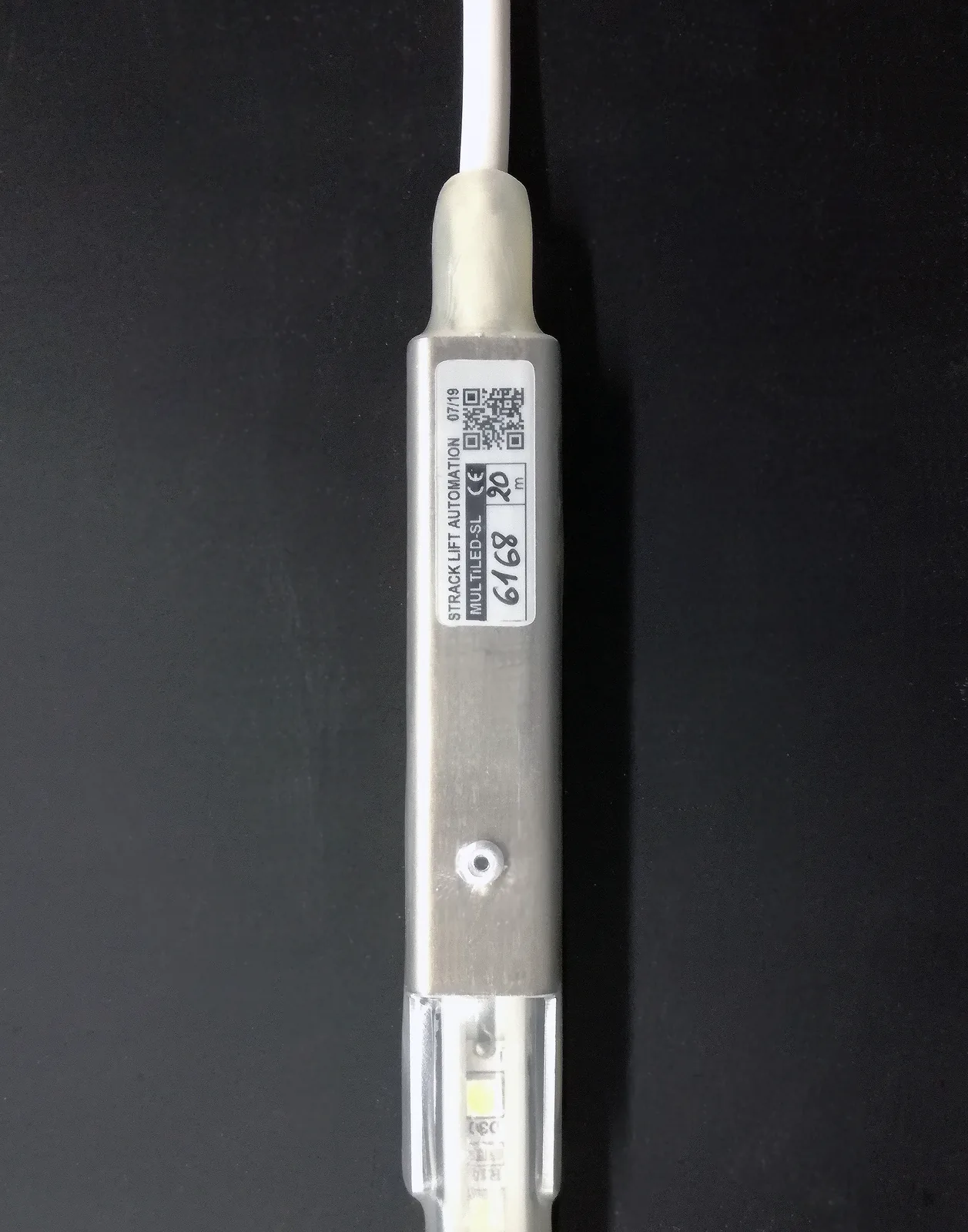

New connection electronics

New electronics for more power with minimal warming. Thus, lengths of up to 100 meters are available now.

Technical data
